Excavators
From heavy excavation to precision work, JCB Excavators combine strength, smart technology, and reliability to help you complete projects faster and more efficiently.
Excavators
The best-in-class range of JCB excavators comprises heavy-duty excavators that exhibit maximum performance, strength, efficiency and productivity. For over four decades, JCB has been a name to be reckoned with among the excavator manufacturers of the world. Our innovative and technologically advanced excavators are manufactured at JCB’s state-of-the-art manufacturing facility in Pune. Also known as diggers, JCB excavators have played a key role in India’s urbanization.

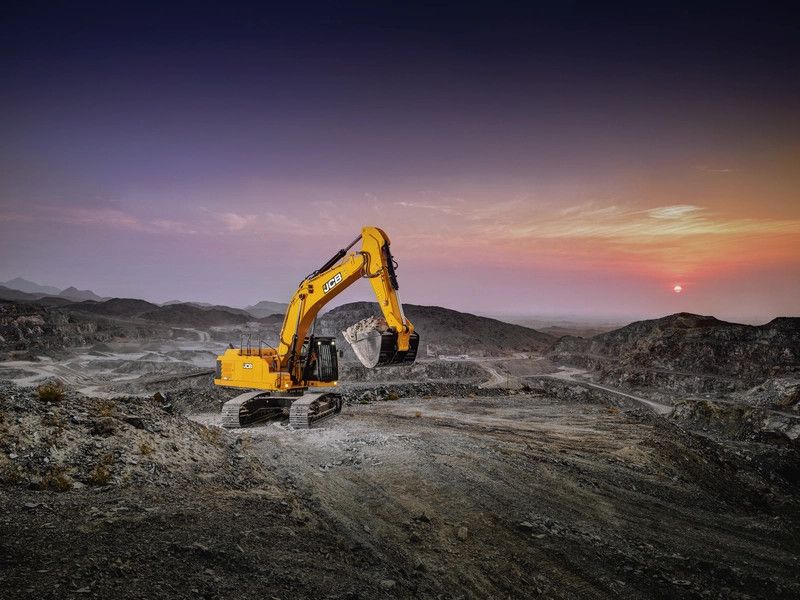

520X
The 520X is a machine built on decades of JCB engineering experience. Designed for high load and high output environments, it delivers productivity, reliability and efficiency without compromise.
With 95% of parts available within 24 hours worldwide, and a lower total cost of ownership, the 520X is more than our biggest excavator: it’s your biggest advantage.
Product Specifications
Max. Engine Power
298 kW
Max. Bucket Capacity
2.8 m³ - 3.4 m³
Max. Operating Weight
55,300 kg
X-pect More Performance
From extreme climates to the most unforgiving terrains, demanding projects need a JCB big excavator. The 520X is purpose-built to perform, and delivers:
- Ultra-powerful X12 engine: our biggest excavator contains a huge 298 kW of power engine. For unstoppable productivity, even in extreme applications.
- Powerboost function: perfect for tough ground conditions, the JCB excavator power boost button increases system pressure for up to 9 seconds for a 6% increase in tearout force.
- Ultimate productivity: a dedicated, 6.5m boom, mass excavation specification and dual slew motor system delivers class-leading cycle times.
- Ultimate versatility: with options including a 6.9m monoboom, double and triple grousertrack plates, and a range of hydraulic systems to suit various attachments.
X-pect more Efficiency
Running a 50T excavator isn’t easy to do efficiently. But JCB has an unbeatable history of delivering low TCO for high-powered machines – and the biggest JCB excavator in the world is no exception. Minimum refuelling and service breaks. Maximum productivity:
- Efficient operation: with eco, power & lift modes to suit different applications – operators can tailor their machine to their preferences.
- Efficient serviceability: long service intervals, grouped greasing, quick drain points and a refuelling pump all help to maximise uptime.
- Efficient features: including Engine Autostop, Auto Idle, and Automatic engine shutdown on selectable timer, to reduce fuel consumption and emissions.
- Efficient cooling: by keeping the fan separate from the engine drive motor, there’s a more efficient use of space – and the option to add a larger fan. These are hydraulically-operated and reversible as standard.
- Efficiency monitoring: with the unique JCB LiveLink system, you can keep a close eye on your machine’s location, fuel usage, CO2 emissions and maintenance – wherever you are in the world.
X-pect More Durability
The JCB 520X is engineered with durability in mind, from the tracks and undercarriage to the doors, dipper and dig end. Every part of the machine is robustly constructed, ensuring longevity in the world’s most demanding applications:
- Ultra-reinforced: our 50 tonne excavator undercarriage has the thickest structures in the X Series, twin-support top rollers and reinforced idler boxes range for supreme durability.
- Tested to extremes: our dig-end has been proven to endure over 25,000 hours of destructive testing, with casted boom foot and nose end, as well as significant internal strengthening for ultimate durability.
- Proven hydraulic components: crafted in Japan by industry experts to maximise the efficiency and lifespan of your machine.
- Heavy-duty parts: with dipper lengths from 2.55m to 3.9m and larger bucket sizes available, our biggest mining excavator is more than a match for tough jobs.
X-pect More Ease of Use
The 520X is built with simplicity at its core. With JCB’s biggest excavator, you can start operating in just two seconds. With a simple, keyless start / stop button, in-cab ‘how to’ videos and our famous ultra-intuitive controls, it couldn’t be easier to get going.
- Easy servicing: grouped filters and wide-open service bays makes maintaining this machine easier than ever.
- Easy operation: with the intuitive X Series 10” colour touchscreen monitor and ergonomic switch gear. All supported by the built-in operator how to guides.
- Easy visibility: with high-definition front and rear-view cameras as standard, and 360-degree camera options.
X-pect More Comfert
With over 750+ outlets and a vast network of trained engineers, JCB ensures that maintenance is hassle-free, quick, and efficient. The availability of genuine parts further enhances the ease of service, keeping your machine running smoothly.
- Remote diagnostics for faster error code identification.
- Extended fuel filter replacement interval from 500* to 1000* hours.
- Hydraulic system designed for cleaner oil with a 4000-hour interval.
- Open loop crankcase ventilation eliminates filter changes, saving on maintenance.
- Better uptime with remote diagnostics.

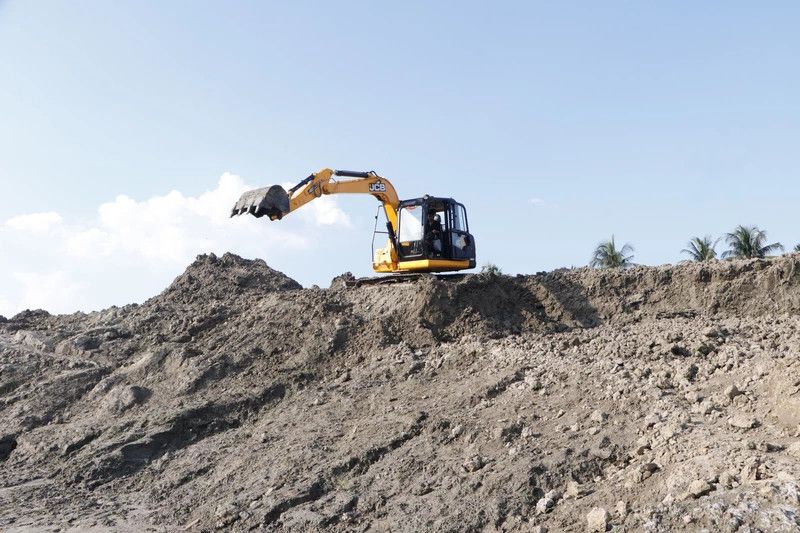

JCB 81
Catering to the needs of urban infrastructure, JCB introduces an incredibly and efficient 8 tonne excavator – JCB 81.
This hydraulic 8 tonne excavator is a reliable companion for irrigation, rural projects, brick works, ponds and fisheries etc. High on performance and high on savings, the 8 tonne urban excavator by JCB lets you save up to Rs 1 lac/Year* by offering an outstanding fuel economy due to 15% reduction in fuel consumption with 15% improved output tonne per hour in P mode. The compact excavator delivers excellent bucket & dipper tear-out forces resulting in higher output & faster completion of work.
Product Specifications
Max. Engine Power
57 kW
Max. Operating Weight
8,050 kg
Performance
Excellent bucket and dipper tear- out forces results in higher output & faster completion of work.
- The advanced hydraulic system ensures excellent multi-functional performance.
- Higher swing speed of 12.5RPM in P mode.
- Equipped with twin travel speeds for varying job needs
Operator Comfort
All new cab with pressed steel construction offers increased internal space and enhanced overall visibility.
- Roof hatch provided to keep the cab well ventilated, which is aided by a rear sliding window.
- High visibility for working at different heights through glass provided in front of the cab. Rubber-coated track pedal and foot rests for operator comfort. Front lower glass can be removed for ventilation.
- Ergonomically placed operator controls to minimise operator fatigue.
- 25% bigger cabin space.
Ease of Serviceability
Compact and easy-to-handle bonnet is assisted by gas strut that helps in easy opening and closing. It makes periodic maintenance easy and effortless.
- Easy to access periodic check points.
- Side by side radiator & cooler for ease of maintenance.
- Wire mesh provided to avoid clogging of radiator & oil cooler.
- Fuses & relays are located inside the cabin and are easy to access.
- Remote-mounted engine oil filter to allow easy access.
Fuel Efficient
Offers 15% reduction in fuel consumption.
- Saves upto Rs. 1 lac in a year.
- Auto idler, for fuel saving, when machine is not at work.
- Choice of productivity & economy, P & E mode.
Low Maintenance cost
Special filtration system extends hydraulic oil life up to 5 000 h, which reduces the overall maintenance costs.
- Engine oil and engine filter replacement has an interval of 400 h. Hydraulic return filter replacement at 1 000 h.
- Radial seal-type air filter elements provide secure and error-free sealing. Filter elements are covered with wire mesh to avoid damage to filter paper during storage, handling and cleaning.

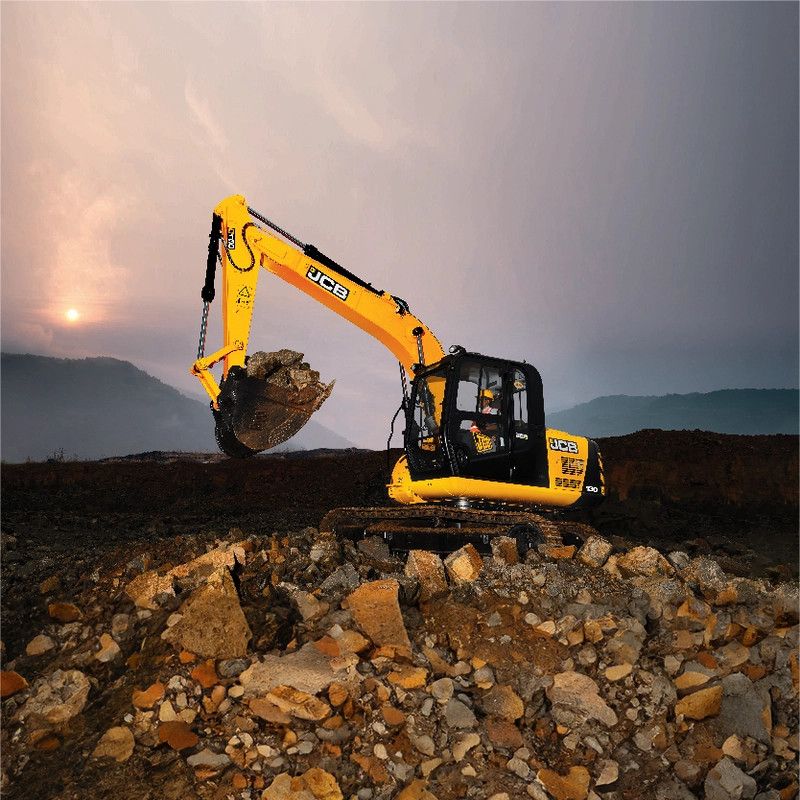

JCB 130
The new 13 tonne Excavator – the JCB 130 is productive in every way. Powered by JCB ecoMAX engine, it delivers high fuel-efficiency while optimising performance according to the task at hand.
JCB’s advanced hydraulic system enables excellent tear-out force with faster cycle times for effective completion of work.
Built to work reliably in all conditions, it is packed with features such as reinforced boom, strengthened arm and IP67/IP69 dust and waterproof electrical connectors. With a special filtration system, air pre-cleaner assembly filter and easy-to-open bonnet, the JCB 130 needs low maintenance and is easy to maintain.
Product Specifications
Max. Engine Power
60 kW
Max. Operating Weight
12,800 kg
Fuel Efficiency and Performance
JCB ecoMAX engine provides fuel-efficiency and generates high torque at low speeds to suit various job needs.
- Choice of productivity (P) and economy (E) modes to optimise productivity and performance.
- Equipped with auto idler for saving fuel during engine idling at high speeds.
- Equipped with twin travel speeds for varying job needs.
- Excellent bucket and dipper tear-out force result in high output and faster completion of work, especially in hard strata.
- JCB’s innovative hydraulic regeneration system recycles hydraulic oil across the cylinders for faster cycle times and reduced fuel consumption.
- The advanced hydraulic system also ensures excellent multi-function performance.
Operator Comfort and safety
It comes with a 25% bigger cabin area, new ergonomic controls to enhance operator comfort and minimise fatigue.
- Comfortable cab with pressed steel construction offers increased internal space and overall visibility.
- Cabin guard at front for protection against damage
- The cab is mounted on six viscous mounts to absorb vibrations.
- Roof hatch provided to keep the cab well ventilated, which is aided by a rear sliding window.
- Glass in the cab front for high visibility helps to work at various heights.
Reliability and Durability
The rugged construction of the upper frame provides durability in tough working conditions.
- Heavy-duty X-frame with belly guard at the bottom comes as a standard fitment.
- Reinforced boom: Deep section design for high strength. Reinforced base area and cylinder mounting area for higher strength.
- Strengthened arm: Strengthened boom joint and bucket joint area. Additional plate provided at the bottom for damage protection.
Ease of Service and low Maintainance
Special filtration system extends hydraulic life up to 5,000 h with the hydraulic main return filter change intervals of 1,000 h, which reduces maintenance costs.
- Air pre-cleaner assembly filters dust particles and help in increasing the life of air filter elements and life of the engine.
- The JCB engine provides higher maintenance interval of 500 h for engine oil, filter and fuel filter thereby reducing the maintenance costs.
- High capacity fuel pre-filter with water separator – to increase the life of the fuel system components.
- Compact and easy to handle bonnet is assisted by a gas strut that helps in easy opening and closing. It makes periodic maintenance easy and effortless.
- Easy to access periodic checkpoints.
- Side by side radiator & cooler for ease of maintenance.
- Wire mesh provided to avoid clogging of radiator & oil cooler.
- The cooler unit air-conditioner is hinged for easy access to the radiator & cooler unit for cleaning.

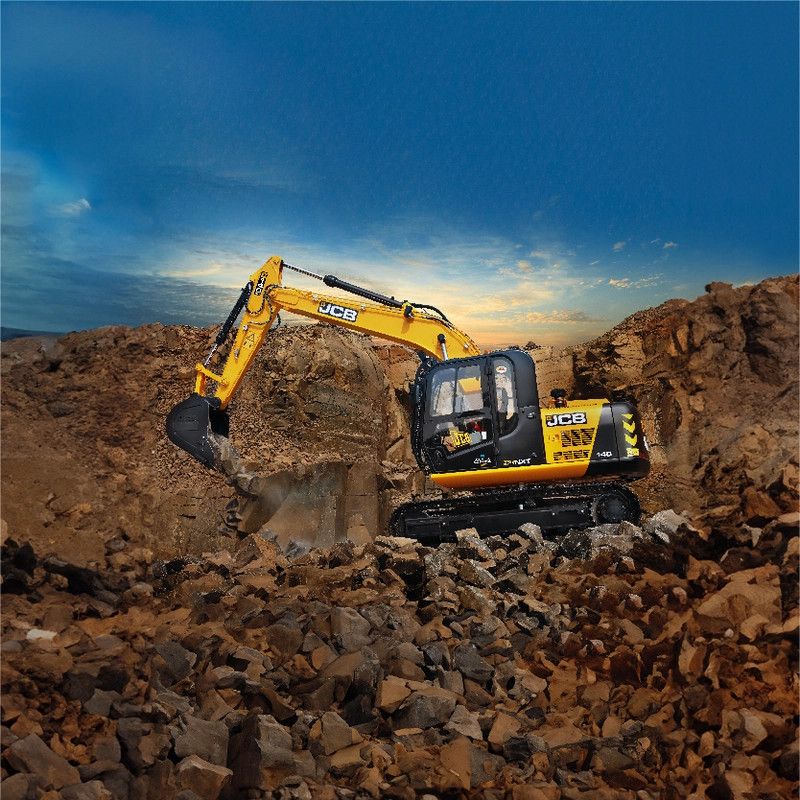

NXT 140
Discover better productivity with the JCB NXT 140. Built to last in tough working conditions, the JCB NXT 140 features a reinforced structure and a new heavy-duty bucket design with more wear plates and side cutter for quarry.
Equipped with JCB Dynamic Efficiency for 3 power modes, the JCB NXT 140 delivers better business productivity with NXT level class-leading fuel efficiency.
Designed for better performance in demanding conditions, the JCB NXT 140 uses Power Plus mode to deliver 6% higher output than the existing model. Powered by IntelliControl for real-time operational analytics, it is packed with features to take your excavation to the NXT level. Look for a better way with the JCB NXT 140.
Product Specifications
Max. Engine Power
75 kW
Max. Operating Weight
14,320 kg
NXT level of care
Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care.
- Huge network of 700+ dealer outlets and over 5,000 trained engineers.
- Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
- JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
- Our service engineers are equipped with smart serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
- Easy access to genuine parts through JCB genuine parts mobile application.
NXT level of performance
The JCB NXT 140 comes with a new power mode, regenerative hydraulic circuit and more for the NXT level of performance.
- New power plus mode for 6%* higher output.
- Regenerative hydraulic circuit.
- High operating weight for high stability & lift capacity.
- Excellent bucket and arm tear out forces result in higher output and faster completion of work..
NXT level of Reliability
With reinforced boom and arm, dust and waterproof electrical connectors and more structural enhancements, the JCB NXT 140 provides the NXT level of reliability.
- Heavy duty track link with higher sectional area provides higher strength and durability even while working in hard strata.
- Reinforced boom and arm are made of high tensile steel that offers higher strength & longer life in most arduous applications
- Dust and waterproof IP67 / IP69 connectors have been used in electrical connectors for longer life.
- 0.72 cum. bucket is designed for longer life in general applications and 0.63 cum. stronger bucket with side cutter specially designed for quarry application.
NXT Level of intelligence
The JCB NXT 140 comes with a built-in digital display screen that shows real-time operational data, powered by IntelliControl. See the amount of fuel left in the tank, engine modes and much more with IntelliControl.
- Best-in-class digital display screen with anti-glare informative colour display.
- Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto idle status & time setting and much more.
- Critical maintenance information like colour coded health alerts, easy diagnostic system, service warning alerts and much more.
NXT Level of Connect
With advanced telematics technology on the JCB NXT 140 – controlled by the LiveLink mobile application, you can monitor your machine remotely. Get health and maintenance alerts, mode wise machine usage and more with LiveLink mobile application.
- LiveLink application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
- Advanced telematics technology for idle time monitoring.
- Customised report on performance and fleet management.
- Critical health alerts and maintenance reminders through LiveLink application.

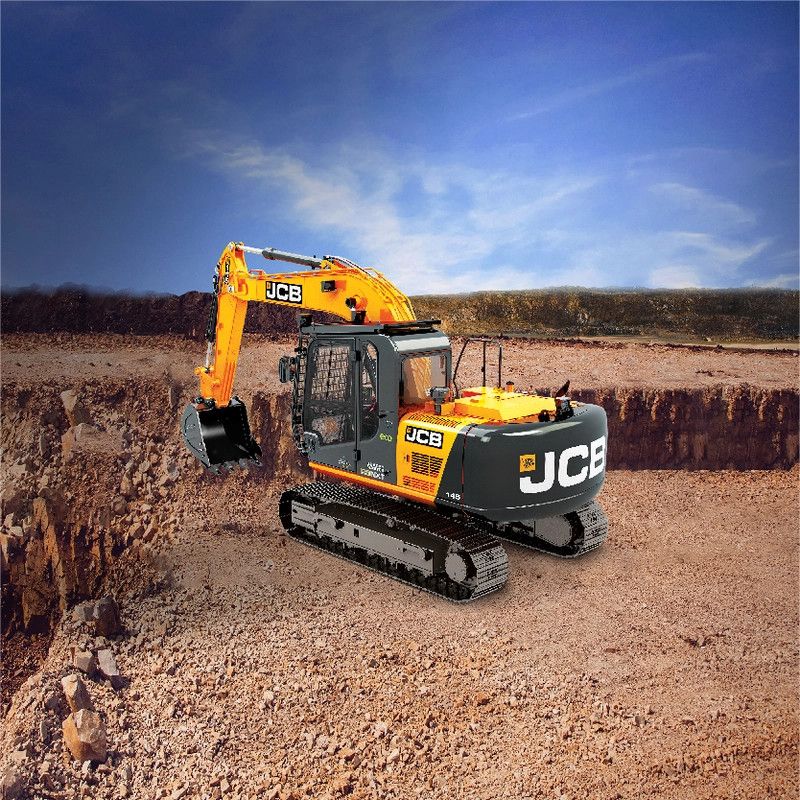

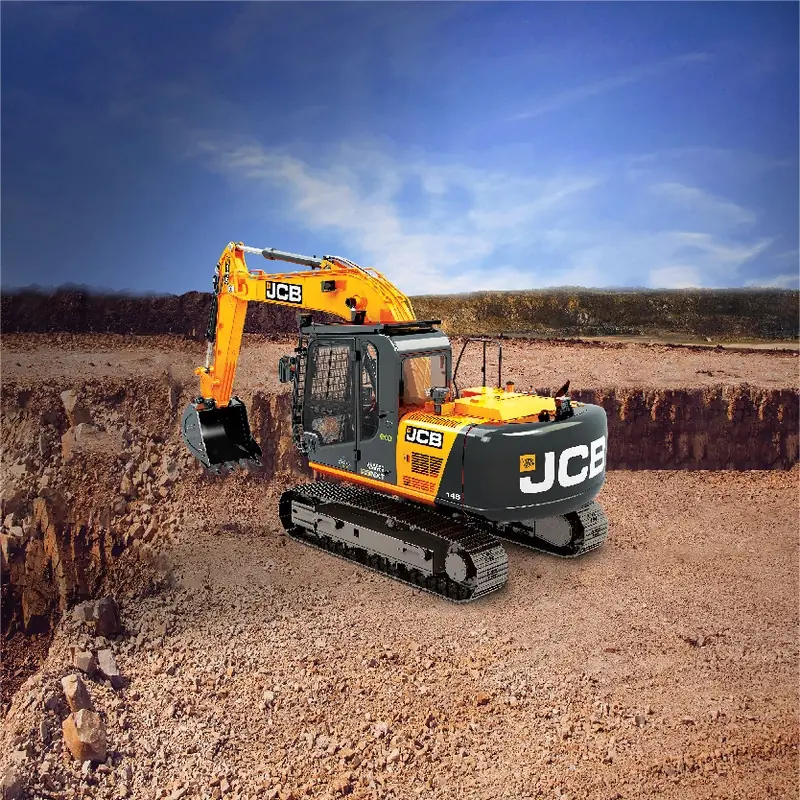

NXT 145 Quarry Master
With enhanced endurance, both inside and outside, and higher strength attributed to a newly inducted heavy-duty boom, ensuring extreme sturdiness, extra safety features and added comfort for the operators, the JCB NXT 145 Quarry Master tracked excavator is designed to move mountains in extreme conditions.
Built specifically for the quarry application in JCB’s 14 tonne excavator category, it is powered by IntelliControl, which is a new and intelligent way to offer excellent fuel efficiency and productivity, as required by the user. What’s more, it also offers you utmost ease of use and control on the machine operation, maintenance and safety.
Product Specifications
Max. Engine Power
75 kW
Max. Operating Weight
14,500 kg
NXT level of performance & Efficiency
Boom and arm regenerative system leads to high operating speed and helps to reduce the load on the engine, thereby lowering the fuel consumption.
- Excellent digging and tear out forces of the bucket (9,432 kgf) and dipper (7,566 kgf) for higher output and faster completion of work.
- The stunning swing speed of 13.6 rpm for quick and fast cycle time.
- 10 working modes for varied operations and power plus mode for 6%* higher output.
- One-touch idler for instantaneous engine speed reduction, whenever required.
- Auto idler system reduces engine rpm automatically when the machine is not in use.
- ecoHYDRAULLICS for optimized engine speed & hydraulic pump control to minimize the hydraulic losses and enhancing the fuel efficiency of the machine.
NXT level of comfort & safety
Display of all critical parameters accessed through the internal menu for an easy health monitoring with and easy rotary switch control.
- Heavy-duty front & top guard with light guards on cabin for enhanced safety.
- Thin and low effort joystick for long productive operations.
- Laminated glass on the front and right-hand side of the cabin.
- Advanced self-diagnosis system with error codes and multi-coloured warning alerts for easy and quick maintenance.
- First-in-class safety features like breaker overuse alert, hydraulic accumulator, swing lock, hydraulic interlock, engine & hydraulic overheat safety system and 2GO hydraulic isolation system.
NXT level of Reliability
Heavy-duty upper frame with reinforced side member and belly guard ensures protection of the rotary joint and hoses from any external damage.
- Heavy-duty boom with reinforcement and cast pivot end at boom foot joint.
- Improved cross-section area for high strength.
- Bigger and heavy-duty bucket size (0.63 cum & 0.72 cum.) for high output.
- Heavy-duty track chain with thicker shoes (44 x 500mm), large section links & rollers.
- 2 track guides on each side-retain the track in its position while working in tough underfoot conditions.
- Heavy-duty track frame with idler area reinforcements.
- Dust and waterproof IP67 / IP69 connectors have been used in electrical connectors for longer life.
NXT Level of uptime & care
JCB engineers are equipped with an industry-first JCB smart serve technology which enables JCB to send the closest engineer to the machine, ensuring maximum uptime.
- Extended maintenance interval of 500 h of engine oil, oil filter and fuel filter.
- Long oil drain interval of 5,000 h for hydraulic oil change, 1,000 hours for hydraulic filter change, and boom pivot pin greasing at 50 hours interval.
- With 750+ service outlets, the largest network of 5,000+ service experts & trained engineers and easy availability of genuine parts and one shop solution, the serviceability is easy, quick, and efficient.
- 65+ dealerships outlets are always ready with more than 250+ service vans to serve customers.
- 5 strategically located warehouses to serve you with genuine wherever you are.
- 11 operator training centres with 24×7 support in 12 different languages.
NXT Level of Intelligence
The JCB NXT 145 Quarry Master tracked excavator is powered by IntelliControl. It’s a new intelligent way to achieve excellent fuel efficiency and productivity, as required by the user, with the utmost ease of use and control on the machine operation, maintenance and safety.
- Best-in-class digital screen with anti-glare informative colour display.
- Enhanced user experience to provide control over the operation, daily & periodic maintenance and safety checks of machine.
- Accurate operational information like quantity of fuel left in the tank, engine speed and operating modes, trip meter, auto-idle status & time setting and much more.
- Critical maintenance information like colour coded health alerts, easy diagnostic system, service warning alerts and much more.
- Integrated with advanced telematics technology – JCB LiveLink. Stay connected with your machine 24×7 and get health and maintenance alerts, mode wise machine usage and more with the JCB LiveLink mobile application.

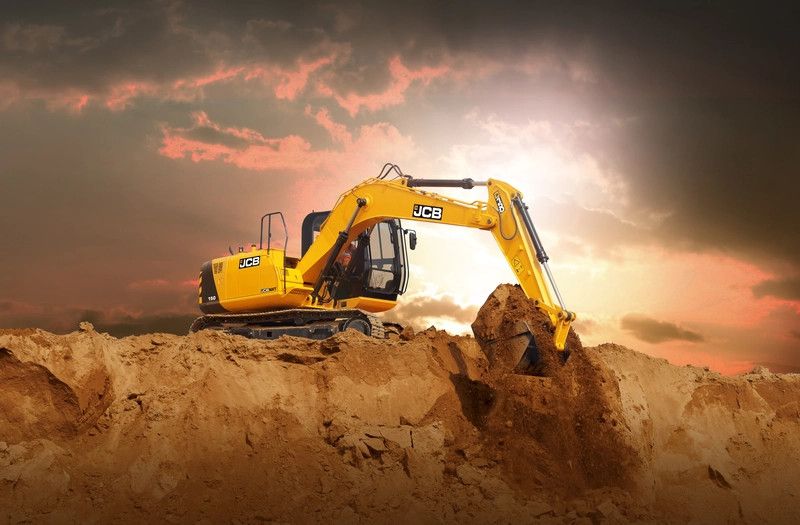

NXT 150
The all-new JCB NXT 150, the NXT Level 14 ton excavator, brings the next level of performance, efficiency, intelligence, and connect with its prime offerings. It’s built for irrigation, earthworks, and sand application in slushy conditions.
It is powered by IntelliControl, which has 3 power modes across 10 engine speed bands, allowing you to choose the right mode for the job at hand. Stay in control 24×7 with JCB LiveLink, an advanced telematics solution that provides real-time machine data and enhances your business’s operating efficiency.
Product Specifications
Max. Engine Power
75 kW
Max. Operating Weight
14,700 kg
NXT level of efficiency & comfort
The JCB NXT 150 is highly fuel-efficient with the energy-saving ecoHYDRAULICS .
- ecoHYDRAULICS minimise the hydraulic losses resulting in enhanced fuel efficiency, thus increasing savings.
- A one-touch idler deceleration system helps to reduce engine rpm by just giving one touch to the switch.
- Regenerative hydraulic system for higher operating speeds
- Enhanced operating weight for better stability, and evenly distributed load for low ground bearing pressure.
- A powerful AC cabin with rotary switch controls and a thin and easy-to-use joystick.
- Laminated glass on the front and right-hand side of the cabin.
- Heavy-duty cab guards and 6 nos. viscous mounts to absorb vibration for operator comfort.
NXT level of performance
Achieve the NXT level of performance with 3 different power modes and higher output.
- 3 user-friendly power modes- power plus, power, economy.
- Excellent bucket and arm tear-out forces resulting in higher output.
- A 3.6 rpm swing speed completes digging in lesser time and increases the productivity of the machine.
NXT level of care & easy maintenance
Combining a huge network of dealer outlets with a highly skilled workforce and technology to serve you better, JCB provides you with the NXT level of care and ease of maintenance with leading service intervals.
- A huge network of 700+ dealer outlets and over 5,000 trained engineers.
- Experience seamless service with 5 warehouses for parts availability and 250+ service vans for repair work in the field.
- JCB’s highly skilled engineers help you to maximise your profitability and reduce downtime.
- Our service engineers are equipped with smart serve technology which enables us to send the closest engineer to the machine, ensuring maximum uptime.
- Easy access to genuine parts through JCB genuine parts mobile application.
- Enhanced maintenance intervals for engine oil and filters of 500 hours, hydraulic filter replacement at 1,000 hours, and hydraulic oil replacement at every 5,000 hours.
NXT Level of reliability
With a new heavy-duty boom and arm, the JCB NXT 150 excavator is dependable and durable.
- 0.75 cum heavy-duty bucket for high output.
- 600mm wider & strong shoe track with large section links & rollers for better stability in slush grounds.
- Heavy duty track frame with idler area reinforcements.
2 nos. of track guides on each side-retain the track in its position while working in tough underfoot conditions. - Heavy-duty front guard and upper frame with reinforced side member.
- New heavy-duty boom with reinforcement and cast pivot end at boom foot joint. Improved cross-section area for high strength.
NXT Level of Intelligence and connect
Be assured of your JCB excavator’s service, operation, and security with the advanced telematics system, LiveLink.
- Stay connected 24×7 and monitor your machine operations.
- LiveLink application’s SMS/email alerts on the sudden drop in fuel levels, the machine moved outside geo-fenced area.
- Advanced telematics technology for idle time monitoring.
- Customised daily reports on performance and fleet management.
- Critical health alerts and maintenance reminders through the JCB LiveLink mobile and website application.
- Advanced self-diagnosis system with error codes and multi-coloured warning alerts for easy and quick maintenance.
NXT 205
Discover the NXT level of efficiency with JCB NXT 205/JCB NXT 205LC.
Equipped with IntelliControl for a complete view of operations on a built-in digital display screen, the JCB NXT 205 gives you more control to optimise the machine for better efficiency. Powered by advanced telematics technology, it enables you to manage your machine remotely through operational data, health and fuel alerts and location data for better operational control.
Product Specifications
Max. Engine Power
104 kW
Max. Operating Weight
20,550 kg
NXT level of Control
Get real-time operational data on a digital display screen with IntelliControl.
- See fuel status, colour coded health alerts, engine speed and operating mode status on the screen.
- Monitor your machines remotely with advanced telematics technology.
- Use LiveLink mobile application for GPS tracking, geo-fencing and machine utilisation reports for more control.
NXT level of fuel efficiency
JCB ecoHydraulics enables innovative power management for reduced fuel consumption.
- A class leading engine powers fuel-efficient operation for 32% reduced fuel consumption in eco mode in comparison with the existing model*.
- JCB Dynamic Efficiency provides 3 power modes: eco, power and power plus for better fuel management and efficiency.
- IntelliControl enables 10 different working modes in eco mode customised for various applications for fuel-efficient operations.
NXT level of low maintenance cost
Special filtration system enables hydraulic oil to change every 5,000 hours and provides hydraulic main filter change interval of 1,000 hours to reduce maintenance cost.
- Turbine type pre-cleaner assembly filters the dust particles and helps in increasing the life of air filter elements and the engine.
- Radial seal type air filter elements provide secure and error-free sealing.
- Graphite induced bush for 50 hours greasing at boom ends.
- Engine oil change interval at 500hrs.
NXT Level of ease of service
Compact and easy to handle bonnet is assisted by a gas strut that helps in easy opening and closing. It makes periodic maintenance easy and effortless.
- Boom end pivot bushes need to be greased at 50 h thereby reducing maintenance costs and increasing machine uptime.
- Fuses & relays are located inside the cabin and are easy to access.
NXT 210LC Fuel Master
Engineered to exhibit next-level digging and lifting capabilities in tough quarry and hard strata applications, the all-new JCB NXT 210 LC crawler excavator stands out in the market as one of the most capable and value-for-money machines in the 20-21-tonne segment. Built on the NXT platform, JCB’s “Fuel Master” series, the JCB NXT 210 LC excavator offers cutting-edge IntelliFlow hydraulics technology, a fuel-efficient diesel engine, and an Auto-Idler feature to save every drop of fuel while ensuring promising capabilities.
Product Specifications
Max. Engine Power
104 kW
Max. Bucket Capacity
0.9 m³
Max. Operating Weight
21,250 kg
Unmatched power and productivity
- Powered with 5.9L Cummins 6BT water-cooled turbo-diesel inline-6 engine.
- 104 kW/140 hp @ 2,000 rpm and 571 Nm of torque @ 1,300 rpm.
- 170 kN maximum tractive force for improved performance in terrains.
- 3 Power modes (Eco, Power, Power+) and 10 working modes for operator-tailored performance.
Lower fuel cost
- Highly efficient 5.9L Cummins 6BT water-cooled turbo-diesel inline-6 engine.
- Advanced IntelliFlow Hydraulics (iFH) minimises hydraulic losses and ensures optimal energy use for 14% better fuel efficiency.
- “Eco” mode for lowering fuel consumption during light-duty tasks.
- Auto-Idler features drop engine RPM after 4 seconds of inactivity to reduce fuel consumption.
- 335 litres of maximum fuel capacity for fewer refuel stops with the JCB NXT 210LC Fuel Master excavator.
Extreme durability for demanding tasks
- Superior strength from a heavy-duty boom and arm with deep-section design and reinforced steel pivot ends.
- Improved boom durability with a strengthened foot box section and increased welding on cylinder pivots.
- Heavy-duty upper frame with a reinforced boom-mounting area and a side frame with a closed box for higher durability in challenging conditions.
- Reinforced arm with a full-length additional plate for extra toughness while heavy lifting or digging.
Safety first
- JCB 210 excavator has a “2GO” hydraulic isolation system to ensure hydraulic operations start from a locked position to avoid accidental movements.
- The swing lock system allows operators to lock swing operations and reduce swings to increase worksite safety.
- Extended starter motor life, reduced maintenance costs, and increased uptime with an anti-engine restart system and anti-overcranking system.
Easy maintenance & higher uptime
- Maintenance reminders and service alerts help you plan service dates.
- An advanced self-diagnosis system with error codes allows for easy troubleshooting.
- The radiator and oil cooler are located on the side, allowing for hassle-free cleaning and increased cooling performance.
- A compact engine bonnet with gas struts allows for easy lifting and access during maintenance.
Comfort first
- The JCB NXT 210LC Fuel Master excavator has a cabin with pressed steel construction to protect operators during accidents & collisions.
- Spacious cabin with more operator space offers comfort during extended working hours.
- Deluxe operator seat with weight support, seating angle adjuster, forward-backwards movement, and backrest angle allows for better operator comfort.
- Optimised ventilation with a roof hatch, a rear sliding window and optional air conditioning.
- Additional glass at the front section of the cab increases visibility at higher altitudes.
NXT 215LC
Discover the NXT level of excavation with the new JCB NXT 215LC. Built to help you achieve more, the JCB NXT 215 Excavator is a robust machine powered to optimise performance and fuel efficiency for the NXT level of excavation performance.
JCB’s dynamic efficiency strategy designed 3 power modes and JCB’s ecoHydraulics for innovative power management, the JCB NXT 215LC Excavator offers reduction in fuel consumption by upto 32%* over the outgoing model.
Product Specifications
Max. Engine Power
104 kW
Max. Bucket Capacity
0.9 m³ - 1.02 m³
Max. Operating Weight
21,750 kg
NXT Level of control
Manage your machines remotely with advanced telematics technology.
- Monitor with mode wise break up for machine usage, idle time monitoring, engine long idling count and get alerts for sudden fuel level drop and hot engine shutdown report.
- Get real-time operational information and health alerts on a digital display screen with IntelliControl.
- Optimise performance with 8 modes in eco mode for various applications powered by IntelliControl.
NXT Level of fuel Efficiency
IntelliControl enables 8 different engine speeds in eco mode customised for application for fuel-efficient operations.
- JCB dynamic efficiency provides 3 power modes: eco, power and power plus for better fuel management and efficiency.
- JCB ecoHydraulics enables reduced fuel consumption in the JCB NXT 215LC excavator with innovative power management.
- A reliable engine power fuel-efficient operations for reduced fuel consumption.
NXT Level of care
65+ dealerships and 700+ outlets are always ready with more than 250+ service vans to serve customers.
- 5 strategically located warehouses to serve you parts for JCB NXT 215LC excavator wherever you are.
- 5,000+ service engineers and 3,000+ mobile service engineers to attend to your JCB NXT 215 excavator in any nook and corner of the country.
- 4 operator training centers with 24×7 support in 12 different languages.
NXT Level of low maintenance cost
Special filtration system enables hydraulic oil to change every 5,000 hours and provides hydraulic main filter change interval of 1,000 hours to reduce maintenance cost.
- JCB NXT 215LC excavator’s graphite induced bush for 50 hours greasing at boom ends.
NXT Level of operator comfort
NXT 215LC excavator’s rubber coated track pedal and footrests for operator comfort.
- Front lower glass can be removed for ventilation and visibility.
- AC option is available in JCB NXT 215 excavator.
- The cabin is mounted on six viscous mounts to absorb vibrations.
- Equipped with a roof hatch and 2 lights on top.
NXT 215LC Fuel Master
Powered by cutting-edge, advanced iFH (Intelli Flow Hydraulics) technology, it delivers optimized efficiency and performance, making it the perfect choice for demanding sites and applications. Designed to reduce operational costs while maximizing productivity, the Fuel Master sets a new standard for power and fuel savings in challenging environments. Get a quote today!
Product Specifications
Max. Engine Power
104 kW
Max. Operating Weight
21,500 kg
Redefined efficiency
Manage performance and efficiency of your machine with technology advancement. Fuelmaster JCB NXT 215LC is powered with iFH (Intelli Flow Hydraulics) technology for optimised efficiency and performance which helps in 14%* better fuel efficiency over its outgoing model. Fuelmaster JCB NXT 215LC excavator is loaded with IntelliControl, which offers 3 Power modes – eco, power & power plus. This Intelligent companion optimises the productivity, monitor health of the machine and optimise the fuel consumption with an easy display and controls.
- Adjustable engine auto idle feature for ease and versatility of operation as per job conditions.
- Adjustable long idle engine shutdown feature for enhanced fuel efficiency.
- JCB’s industry first feature in the 21 tonne excavator category – Live fuel consumption data report.
Built to last
Engineered for the tough conditions, the Fuelmaster features reinforced structures and a durable track chain.
It designed with a heavy-duty boom and reinforced arm with added full length strengthening plate at bottom with wear ribs for next level of durability. It has multiple options of standard bucket and heavy-duty bucket ranging from 0.8 cu. m to 1.02 cu. m. With extended service intervals, you experience less downtime and higher productivity. The service schedule of hydraulic main filter is 1,000-hour, hydraulic oil service schedule is of 5,000 hour and engine oil service interval in five hundred hours. It also boasts features like IntelliDiagnostic which helps to offer superior uptime of the machine in minimum lead time.
Enhanced comfort
Enjoy a vibration-free cabin, refresh air conditioning, and a 6-way adjustable seat that ensures operators stay comfortable and productive during long hours on the job.
The new Fuelmaster has improved aggregate life and operational efficiency with new LED work lights. The Fuelmaster is equipped with a large digital display monitor, which display all critical health parameters and service alerts.
NXT level safety
Experience next level of safety with first-in-class safety features and ensure high uptime and productivity.
Rigid handrails for better support while climbing on the machine for regular maintenance. JCB’s unique 2GO system ensures that the hydraulic operation of the new JCB NXT 215LC Fuel Master can only be started from locked position via two separates inputs, which avoids unintended machine operation. Swing lock system enables the operator to lock the swing operations only, whenever required. Anti-engine restart system & anti-over cranking system protect the starter motor from damage, thus ensuring longer starter motor life & higher uptime. 5 hydraulic accumulator enables the operator to lower down the front attachment in case of any emergency without starting the engine. Hammer overuse alert to protect the rock breaker and ensures its long life.
Industry-leading support
65+ dealerships and 700+ outlets are always ready with more than 250+ service vans to serve customers.
- 5 strategically located warehouses to serve you parts for Fuelmaster JCB NXT 215LC excavator wherever you are.
- 6,000+ service engineers and 3,500+ mobile service engineers to attend to your JCB NXT 215 excavator in any nook and corner of the country.
- 20 operator training centres with 24×7 customer support care centre operational in 12 regional languages.
NXT 225 LCM
The JCB NXT 225LC M tracked excavator is the reliable machine India trusts to enable its vision of becoming the next great leader. It’s proudly made-in-India and made-for-India.
JCB NXT 225LC M is powered by IntelliControl which offers 3 power mode along with 10 working modes for excellent fuel efficiency and JCB LiveLink 4.0, which keeps you updated about machine health, maintenance and security 24X7.
Product Specifications
Max. Engine Power
110 kW
Max. Operating Weight
22,200 kg
NXT best in strength & durability
- Heavy-duty dig end bucket with excellent block handling capability.
- Maximum capacity of the excavator bucket is 1.2Cu.m HD with ground bearing pressure of 0.49 kg/sq.cm and 22,200kg in weight.
- The boom and arm deliver high strength while boasting a cast pivot to ensure reliability and robust structure.
NXT best in performance
The new JCB NXT 225LC M tracked excavator is designed to move material in bulk, quickly. To achieve this, the engine and hydraulic systems work in perfect harmony for ultimate efficiency.
- 148hp Cummins engine with in-line fuel injection system.
- Simple and easy mechanical engine that enhances the life of the injection system components.
- The hydraulic regeneration system recycles oil across the cylinders, reducing costs, and increasing cycle times.
- Model: Cummins 6BTAA 5.9
- Gross power: 110kW(148hp) @ 2000RPM
- Piston displacement: 5.9L
NXT best in connectivity
- JCB Live Link 4.0 gives service reminders, critical health alerts, machine data backup, engine status, GPS tracking, geofencing & tow-away alerts.
- Advanced telematics helps improve security and maximize fleet utilization. It provides a complete view of your operations.
- JCB’s support team of 5,000+ Service Experts, 3,000+ mobile Engineers, 250+ service vans and workshop-on-wheels. Moreover, our 24×7 call centre with 12 language support, which works in collaboration with our 5 strategically located warehouses across India, has an army of highly skilled CRM professionals who are trained to resolve any customer concern in the shortest time.
NXT best in service & fuel economy
- Maximise your output under all circumstances. Shift between 10 working modes with the robust hydraulic system.
- Ensure supercharged productivity and the fuel savings you need to successfully conclude your work.
- Increase the longevity of your machine by availing extended service benefits.
- Get 500 Hours of engine oil and 5,000 Hours of Hydraulic oil.
- Long maintenance Intervals for engine & hydraulics guaranteed.
NXT best in comfort
- Comfort is the main focus of the new JCB NXT 225LC M tracked excavator with a design that offers excellent visibility all around, non-slip surfaces and easy access to service.
- Specifically designed to be highly comfortable to ensure productivity.
- To minimise noise and vibration, the cab sits on six viscous rubber mounts. These help to absorb impact noise and reduce operator fatigue.
- The cabin’s front view allows an open view of the right track, providing easy, safe trench digging and comfortable manoeuvrability.
NXT 225 LC M QM
It is designed for excellent performance with dynamic fuel-efficiency. Featuring heavy duty undercarriage, it’s a sturdy excavator. It handles the most difficult site conditions with ease & helps increase your uptime. This outstanding machine is built to move aggregates in the most demanding applications and tough conditions like urban infra, irrigation, dams, seaports, airports, metros, railways, power plants, oil & gas, building, factories, bridges and roads. It also has a quarry master variant ideal for quarrying and mining applications.
Product Specifications
Max. Engine Power
110 kW
Max. Operating Weight
22,500 kg
Reliable & productive
The JCB 225LC eco+ has new variable power modes for complete flexibility, which adapt to work requirement. New H+ mode for increased output and ensures productivity with 8 power modes.
- JCB ecoMAX engine produces 170 hp @1,800 rpm while providing excellent torque of 704 Nm @ 1,500 rpm. This results in an excellent ability to dig in tough strata and high output.
- Power boost feature increases hydraulic system pressure digging forces by 9%
- Hydraulic regeneration system on boom, arm & bucket operation recycles hydraulic oil across the cylinders for faster cycle times and reduced overall fuel consumption.
- A massive 14,360 kg of bucket tear-out force helps in high output even in tough strata.
Dynamic fuel efficient technology
The proven JCB ecoMax engine’s consistent performance helps you achieve 7%* more fuel efficiency leading to savings of up to 7,00,000* in four years over the previous model.
- JCB ecoMAX 4.8 L, 4 cylinder engine provides high fuel efficiency and generates high torque at low speed.
- Common rail fuel injection system delivers high power with low fuel consumption, ensuring high up-time.
- ecoHYDRAULICS minimise energy loss to enhance fuel efficiency. It is engineered for effective and efficient utilisation of every drop of fuel.
- Auto idler reduces engine speed automatically when the machine is not at work, thus saving fuel.
Rugged & robust structure
The JCB 225LC eco+ comes with a reinforced arm with a full-length additional plate to enhance strength for high durability.
- Strong heavy-duty bucket (0.9 cum).
- Proven hydraulic components and filtration system for longer life.
- The heavy duty boom uses deep-section design and pivot ends made of cast steel for higher strength.
- The heavy duty upper frame has reinforced boom mounting area and offers closed box section design on side frame for high durability.
- JCB 225LC eco+ offers heavy-duty X-frame design for greater strength.
Total peace of mind
With 750+ service outlets, largest network of 5,000+ service experts & trained engineers and easy availability of genuine parts and one shop solution, the serviceability is easy, quick, and efficient.
- 65+ dealerships outlets are always ready with more than 250+ service vans to serve customers.
- 5 strategically located warehouses to serve you parts wherever you are.
- 11 operator training centers with 24×7 support in 12 different languages.
- JCB engineers are equipped with industry first JCB smart serve technology which enables JCB to send the closest engineer to the machine, ensuring maximum uptime.
- Exclusive extended warranty* & full maintenance*on-site contract for your machine. Extended warranty and full maintenance contract packages are not the part of the standard warranty.
Stay connected 24x7
Get complete access over the performance and operations of the machine through advanced telematics technology – JCB LiveLink. Data from LiveLink helps to analyse trends and field issues; appropriate measures can be taken to ensure maximum uptime.
- Ensure more uptime for your machine with proactive maintenance & usage alerts on LiveLink application.
- Assess the operational productivity of the machine with performance reports, fuel consumption reports and more.
- Use advanced LiveLink features such as geofencing to enhance security.
- Machine remains connected to you VIA advanced CAN based JCB Live Link which provides periodic updates like average fuel consumption report, performance report, SOS switch, location mapping, fuel consumption, engine on off notification, hammer- usage alerts and machine health alerts.
NXT 245HDLR
Reach far with the NXT level of long reach excavator – the JCB NXT 245HDLR.
With improved reliability and durability, the JCB NXT 245HDLR comes with a deep section boom design, cast pivot ends, and a strengthened foot box and cylinder pivot section.
Designed for efficiency and powered by intelligent features, the JCB NXT 245HDLR Long reach is made to take your excavation to the NXT level.
Product Specifications
Max. Engine Power
104 kW
Max. Bucket Capacity
0.45 m³ - 0.55 m³
Max. Operating Weight
23,850 kg
NXT level of performance
JCB’s innovative hydraulic regeneration system recycles hydraulic oil across the cylinders for faster cycle times and reduced fuel consumption.
- The advanced hydraulic system also ensures excellent multifunction performance, resulting in higher output levels.
- Excellent bucket and dipper tear-out forces result in higher output and faster completion of work, especially in hard strata.
NXT level of fuel efficiency
JCB ecoHydraulics enables innovative power management for reduced fuel consumption.
- JCB Dynamic Efficiency provides 3 power modes: eco, power and power plus for better fuel management and efficiency.
- IntelliControl enables 8 different engine speeds in eco mode customised for various applications for fuel-efficient operations.
NXT level of low maintenance cost
Special filtration system enables hydraulic oil to change every 5,000 hours and provides hydraulic main filter change interval of 1,000 hours to reduce maintenance cost.
- Turbine type pre-cleaner assembly filters the dust particles and helps in increasing the life of air filter elements and the engine.
- Radial seal type air filter elements provide secure and error-free sealing.
- Graphite induced bush for 50 hours greasing at boom ends.
- Engine oil / filter change – 500 hours.
NXT level of reach
- Maximum digging reach of 15.5448 m (51 ) for digging wells and ponds.
- Maximum digging depth of 12.192 m ( 40).
NXT level of control
Use Live Link mobile application for GPS tracking, geo-fencing and machine utilisation reports for more control.
- Get real-time operational data on a digital anti-glare informative colour display and dial type throttle screen with IntelliControl.
- See fuel status, colour coded health alerts, engine speed and operating mode status on the screen.
- Monitor your machines remotely with advanced telematics technology.
345LC HD
JCB 345LC HD is a heavy duty excavator which is armed to deliver excellent performance, reliability and durability in marble and granite block handling applications.
There are five key reasons to own this Excavator armed with reliable features for heavy-duty applications that will help you perform at your best.
Product Specifications
Max. Engine Power
165 kW
Max. Operating Weight
34,462 kg
Armed for high uptime
For tasks that are tough, and the conditions that are even tougher, the 345LC HD is designed for maximum uptime.
- JCB’s DIESELMAX engine makes it easy to enhance the life of the fuel injection system components.
- Simple and easy engine with inline fuel injection system.
- The boom and arm deliver high strength with long life while boasting a cast pivot to ensure reliability and robust structure.
- Enhance uptime and eliminate unnecessary downtime with the override switch.
Armed for safety
Safety and comfort are the main focus of the new 345LC HD, with a design that offers excellent visibility all around, non-slip surfaces and easy access to service.
- JCB has added a safety level lock to the 345LC HD and can only be started in a safe locked position via two separate inputs.
- JCB Livelink 4.0 – The advanced telematics helps to improve security and maximize fleet utilization. It provides a complete view of your operations.
- The work light is designed to ensure optimum visibility even in low-light conditions.
Armed with comfort
The new JCB 345LC HD is designed to deliver ample strength and versatility for demanding jobs, but is specifically designed to be highly comfortable to ensure productivity.
- To minimise noise and vibration, the cab sits on six viscous rubber mounts. These help to absorb impact noise, vibration and reduce operator fatigue.
- The JCB 345LC HD’s front view allows an open view of the right track, providing easy, safe trench digging and comfortable manoeuvrability.
- The interactive digital display enables you to change settings in an intuitive manner & helps operator to take smart decisions on site.
Armed with performance
- This JCB 345LC HD has been designed with affordability, efficiency and productivity at its heart, making it an easy-to-maintain and service machine that will give you the value for money.
- Long maintenance intervals for engine & hydraulics.
- The new cooling pack with a fly-mesh guard prevents blockages in the coolers.
- This highly-efficient oil and fuel filter combination is strategically placed centrally on the machine for fast and easy servicing.
- This 590L capacity fuel tank gives you plenty of operating time between refills, making this a good choice for medium to long-haul applications.
- JCB support team of 5,000+ service experts, 3,000+ mobile engineers, 250+ Service Vans and Workshop-On-Wheels. Moreover, our 24×7 Call Centre with 12 language support, which works in collaboration with our 5 strategically located warehouses across India, has an army of highly skilled CRM professionals who are trained to resolve any customer concern in the shortest time.
Easy & swift maintenance
Use Live Link mobile application for GPS tracking, geo-fencing and machine utilisation reports for more control.
- Get real-time operational data on a digital anti-glare informative colour display and dial type throttle screen with IntelliControl.
- See fuel status, colour coded health alerts, engine speed and operating mode status on the screen.
- Monitor your machines remotely with advanced telematics technology.
385LC
JCB’s 385LC excavator, powered by DieselMax 7.2 Litre CRDI engine, is specifically customized for your applications and business needs. The hydraulics are designed to maintain productivity and it is easy to operate, maintain and save money with. This excavator moves more material for less cost, making your tough working conditions a whole lot easier.
